14405 - MEGA PA310 Tri-Tank - Develop, Wash and Etch

Develop, Wash and Etch

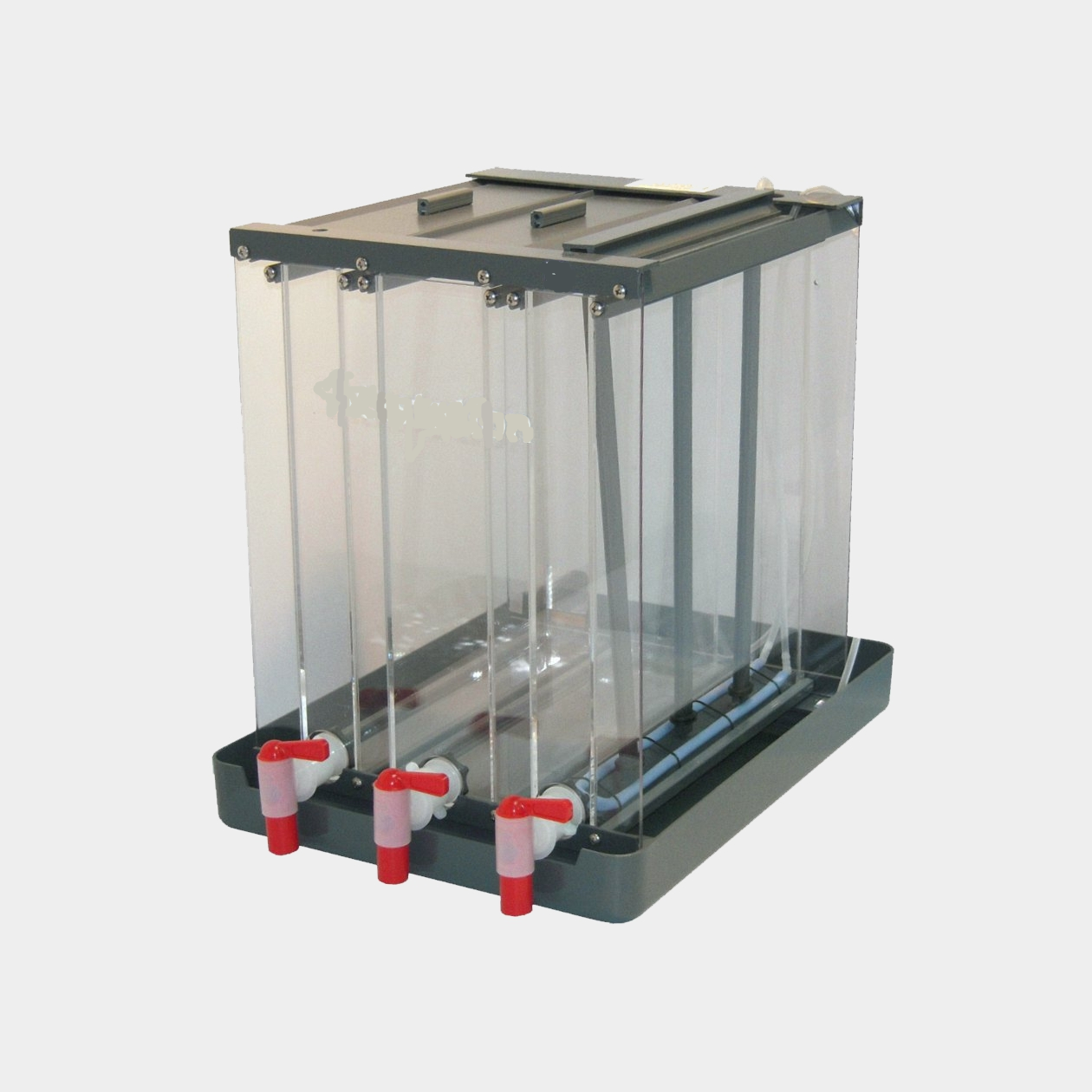

The PA310 is a popular PCB processing unit. A self-contained triple process unit with built-in DEVELOP / WASH / BUBBLE ETCH functions providing a convenient bench standing system. The PA310 eliminates the normal untidiness associated with producing PCBs to the solderable-etched stage. A RESIST STRIP /  WASH / IMMERSE TIN combination can be added to provide a full PCB processing run.  Supplied Complete with 2 metre mains cable.

• Operating Voltage 230VAC 50Hz/60Hz 600 Watts
• 1 x Adjustable Heater Approximately  preset to 45 °C (113°F)
• Suitable for metal Etching applications including the production of PCBs, from photoresist coated or conventional copper clad boards
• Adjustable board holder to a maximum (240 x 310 mm) Board/Panel capacity
• Only suitable for use with Fine Etch Crytals (Sodium Persulphate) not recomended for use with Ferric Chloride
• Unit Size Width 42cm, Depth 32cm, Height 44cm Weight 6Kg
• Shipping Dimensions Width 53cm Depth 44cm Height 61cm
